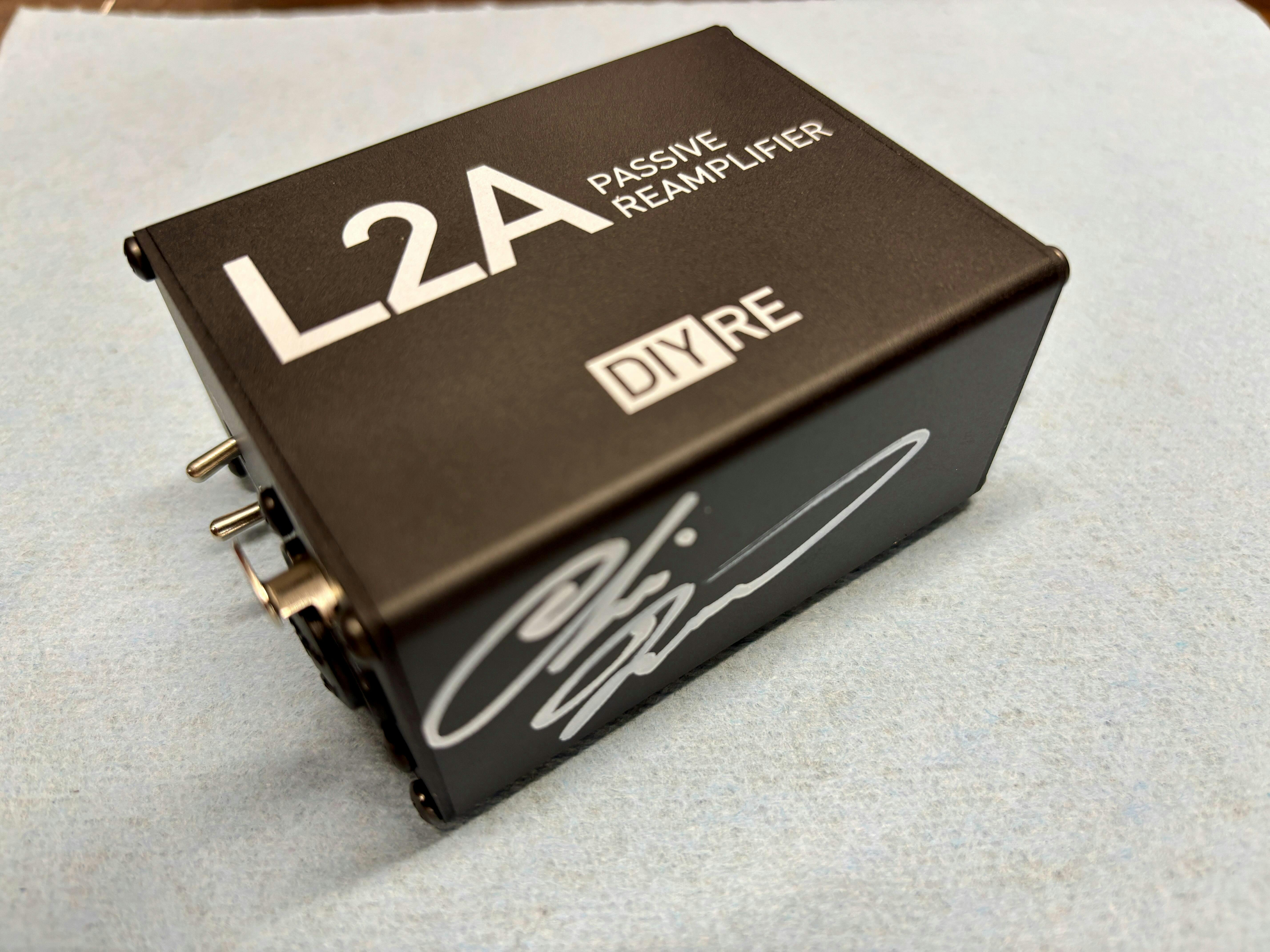

Get started with DIY and build your own professional reamping box with our most popular kit. The L2A is a rugged, sonically transparent re-amplifier that just happens to be a DIY kit. It's also a simple, fun DIY kit that happens to be an excellent piece of studio gear.
Unrivaled feature set. The L2A is the only passive re-amplifier to feature a Neutrik combo XLR/TRS input jack. No need to grab a TRS-to-XLR adapter.
The L2A’s three-way filter switch makes re-amping any source imaginable a breeze. The low-pass filter (LPF) tames high-frequencies, useful for mellowing out guitars and other bright sources, while the high-pass filter (HPF) is perfect for tidying up the low-end and sub-bass frequencies.
The fun part. Designed specifically for DIY beginners, the L2A presents no risk of electrical shock, consists of only a few parts, and can be built in about 30 minutes. Step-by-step instructions are available at diy.re/l2a-manual
Estimated build time: 30 minutes
Make something great. The L2A multiplies the sonic possibilities of your recording setup by letting you plug the output from your computer, mixer, or tape machine into your guitar amps and effects pedals. Suddenly, all of your guitar gear becomes another set of tools for adding excitement, depth, and harmonic saturation to your pre-recorded audio.
Kit Includes
- Neutrik COMBO XLR/TRS input jack
- Transformer custom wound in the USA
- Filter stage with Bypass, 1Khz LPF, and 160Hz HPF settings
- Super-durable enclosure made from architectural aluminum
- Circuit board custom designed for beginners
- Metal-film 1% tolerance resistors
- 21-detent stepped potentiometer (volume knob)
- Every nut, bolt, and wire needed to complete the project
| Input Impedance | 10k |
| Output Impedance | 15k |
| THD+N | <0.05% @ 1K Hz |
| Filter Freqs | 160Hz HPF, 1kHz LPF |
Customer Reviews
Kit was complete and all components tested well. Assembly instructions were good. Sound quality was good. There is no coloration change in tone during testing. Handy box!
I ran my synth through it, and the tone comes back warm and clear. The build quality is solid, and the signal stays clean with just the right amount of character. It was also very easy to build. It took me a few hours, but that's only because I'm a perfectionist.
I should have done an unboxing video, it was put together so nicely! All parts are top quality, from the custom extruded metal housing to the heavy duty PCB. Designed for an easy build with basic soldering skills. A parts list would be nice for a larger project, but its lack was no problem here. The directions provided step by step photos which make all clear. Build took 40 minutes at a leisurely pace. Set up for use was easy and in less than 5 minutes I was playing with my pedals while audio streamed out of the DAW. Thanks so much folks! Got my eye on a color preamp next 😉
Super simple to assemble for a newbie like me
30 minutes to assemble.
Presto money saving, quality reamping. Tested it today. Very naaace
