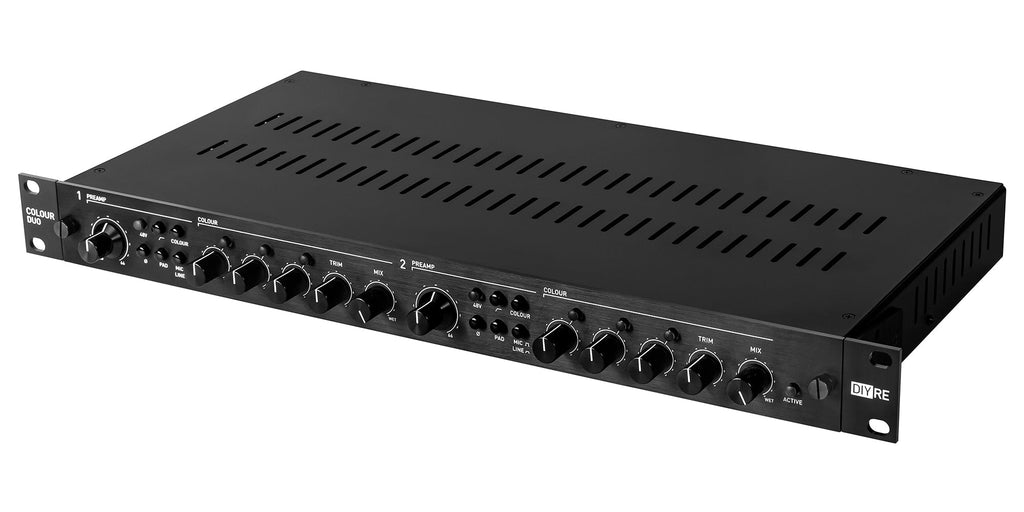

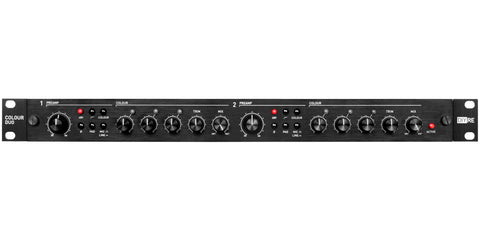

Colour Duo 2-Channel Colour Channel Strip Kit

$650.00

  • Full Kit
  • Step-by-Step Guide
  • Supported
  • Intermediate

The Colour Duo is the ultimate tool for adding analog color to your tracks. Each of the Duo's two channels is a full channel strip, with mic preamps, line inputs, and three Colour slots each.

You can purchase the Colour Duo kit on its own or with one of our Colour Bundles. The bundles contain stereo pairs of each Colour, so six Colours each. To learn more about each bundle, check out our Colour Format Page.


The ultimate Colour Palette

With the Duo we set out to make the Colour Palette of our dreams. Each channel features three Colour slots, with their own independent controls and bypass switches.

New to the Colour section is the much-requested wet/dry mix control. The MIX knob allows for versatile parallel signal processing without making extra tracks in your project file. Push your Colour modules as hard as you’d like, and blend in the dry signal till you get exactly the sound you’re searching for.

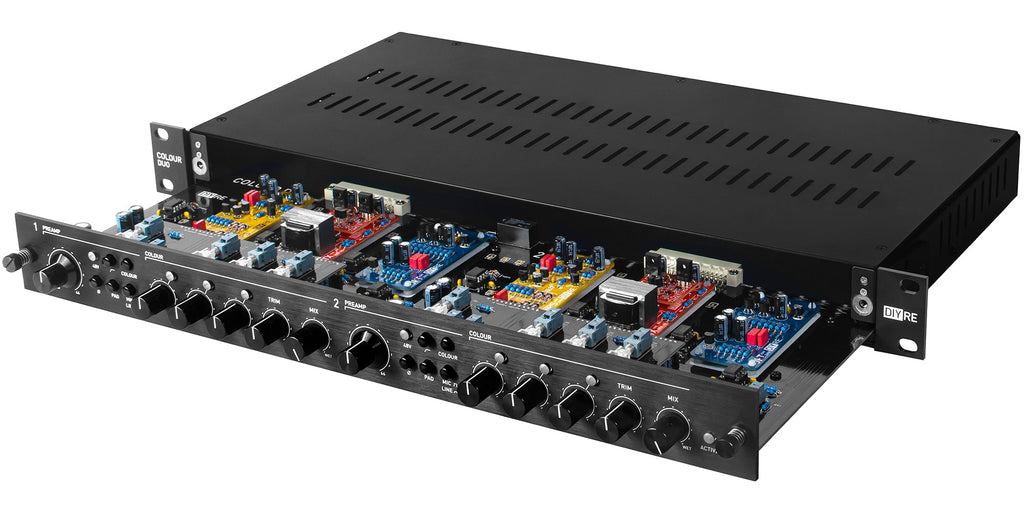

The Colour Duo is the first Colour Palette that lets you swap Colours on the fly without any tools. Simply loosen the thumb screws on the front panel and the entire panel slides out, giving you immediate access to the Colours at any time.


World-class preamps

The Colour Duo features the same pristine mic preamps that made the CP5 our best-selling kit. With exceptionally low noise and 66dB of gain, this isn’t your interface’s built in preamp. Once you hear them at work, you won’t hesitate to record your most important sources with them.

The Colour Duo’s line input is an independent stage that bypasses the preamp completely. And since the line and mic inputs come in on separate jacks, you can keep both connected and just switch between them with the LINE/MIC button on the front panel.


Versatile connectivity

We gave you all the connectivity we could think of. Why? Because we like you and we hate adapters as much as you do. We even equipped a power THRU jack so you can power multiple Colour Duo units from one supply.


Using the Duo

Two Channel Mic Preamp

Track your two most important sources or a stereo pair with the Duo's two world-class preamps. You can track clean to process later, or engage Colours for processing on the way in.

Dual Channel Strip

Use the two channels as line inserts to bring real hardware color to your tracks. Warm up a vocal with saturation or push a room mic to the extreme with a compressor.

Stereo Bus Processor

Add punch to a stereo drum bus or glue your entire mix together with tape and transformer saturation.


Full feature list

  • 21-detent stepped pots for easy recall and stereo operation
  • Easy Colour swapping
    • Front panel drawer slides out
    • Push-lock buttons require no tools to operate
    • Active switch mutes the signal to protect ears and speakers while swapping Colours
  • Power supply
    • Comes with an external, high-current (1.5A) power supply
    • Accepts 110-220v wall power
    • Regulated +/-16vDC and +48vDC outputs
    • Connects to case via 5-pin XLR jack
    • Can power up to four Colour Duos via the POWER THRU jack
  • Mic Input
    • 66dB of gain
    • +48V phantom power
    • 80Hz high-pass filter
    • Polarity
    • -20dB pad
  • Colour section
    • 3 Colour slots per channel
    • Individual bypass and Colour controls for each stage
    • Makeup gain/trim knob
    • Wet/Dry mix knob
  • Connectivity
    • 2 XLR mic inputs
    • 2 Combo XLR/TRS line inputs
    • 2 XLR line outputs
    • 2 TRS line outputs
  • 1U height 19” rack mount case
    • Anodized aluminum front panel
    • Powder-coated steel chassis
  • DIY kit
    • Comes with every part need to complete kit
    • Features our famous step-by-step photo instructions, interactive build map, and component sorting sheet

Block Diagram

Audio enters the Duo through either the MIC IN or LINE IN. The MIC IN can amplify the mic signal up to 60dB, while the LINE IN has a fixed attenuation of -6dB. The MIC/LINE switch selects which input is sent to the rest of the unit.

Signal is then sent to the Colours in series. Each Colour contains a bypass switch, and a dual-gang potentiometer which controls gain before the Colour and attenuation after. The Colours feed a gain/trim stage to make up for the gain or loss from the Colours. This signal then feeds the wet/dry mix stage, where it is summed with the dry signal from before the Colour section. The COLOUR switch selects between the output from the mix stage or the output from the MIC/LINE switch. This feeds the balanced output which provides +6dB gain.

Specifications

Line Input

Input Impedance 24kΩ
Max Input Level 27.5dBu
Distortion 0.008% at 1kHz

Mic Preamp

Input Impedance 3.6kΩ with pad out, 7.2kΩ with pad in
Gain 20 to 66dB
Pad Attenuation 20dB

Line Output

Output Impedance 50Ω
Max Output Level +22dBu

General

Colour Controls Gain Range -6 to +12dB
Trim Control Gain Range -14 to +10dB (unity at center)
Distortion 0.005% at 1kHz with Colour section bypassed, 0.008% with Colour section engaged
Frequency Response ±0.2dB 20Hz to 20kHz rel. 1kHz
Power Rails ±16vDC, +48vDC
Power Input 100-240VAC, ~50/60Hz 2.5A

Customer Reviews

Based on 20 reviews
100%
(20)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Blair Hall
Soooo good

Got the Duo with 70's Character Colour bundle. Also purchased a pair of Royal Blues, an Implode, and a few others that haven't been built yet.
Pretty straight forward build. I've built a pile of pedals and some preamps and some DIYRE boxes, and other than it being a longer build than I'm used to, it was not difficult at all. Finally got to fire it up in the studio today and it is already delivering.
I loaded up a finished mix and replaced saturation and tape emu plugins on the 2-bus with a send to the Duo. Dialed lots of the 15ips, and a bit of the DOA and TM79 for some subtle grit and wow... the mix opened up and got that "3D" quality to it immediately. Next step was to swap out the TM79 for a pair of Royal Blues, so the chain is Royal Blue > DOA > 15ips. The Royal Blue really colours the sound... the mix took on a very different character, it changed how the mids were coming through... I ran that about halfway, and then a bit of DOA for some grime and again lots of 15ips for tape goodness... all dialed back slightly with the Mix knob. Sounds amazing. I still have to A/B between plugins and the Duo, and I have yet to try individual tracks or using it for tracking, but even just on the 2-bus this thing is a winner.

S
Sandra Selig
birthday present

My partner was thrilled to receive this for his birthday!

V
Vadim
Amazing Instructions. Fun Build. Great Sound.

This was my first DIY build and I probably bit off a bit more than I could chew. That said, the amazingly clear build instructions quickly gave me a sense of confidence that allowed me to actually enjoy myself - more so than I expected. I would put on audio book in the evening and do some peaceful soldering. It was very satisfying and the whole thing took me about a week to build at a leisurely pace.

I screwed up some of the daughter boards by initially soldering header pins to the wrong side of the board. Even though this was clearly my fault, Peterson sent me two new boards and I was on my way again.

Then of course there's the most important question: how does it sound? I got the primary colours bundle and used it right away on an indie rock mix. JFT and CTX on the bass guitar for some grit and fatness, JFT and 15ips on the drum bus and then 15ips on the mix bus. It was sweet! I need to experiment a lot more but the 15ips on the mix bus adds that bit of saturation mojo that I'm looking for. It kind of fills in the gaps and thickens things in a good a way. I think a bit will always make a good mix better.

I'm seriously considering a second one.

J
Junior Rivero
I SHOULD HAVE GOTTEN 2

So I've had this for 4/5 months and I put it through hell and back for countless hours and all I can say is I SHOULD HAVE GOTTEN 2 of them.
The great thing about all DIYRE gear is that it gives you options. The duo gives you exactly that and more. I can no longer see myself paying so much money for gear that I would be tied to sonically without options.
Love the mic/line option. The dry/wet knob gives you the flexibility to really dial in your texture and colour combo of choice.
I currently have 15IPS > CTXmk2 > HITMAKER , this is a killer combo for any bus. You can really go deep and experiment with different combinations of colour cards as its the key to getting a good sound, its just like having vst's in the box, the importance in which what order you put them is key.
Ive actually put a mic pre with a certain texture before and after (not at the same time) the Duo, tried both mic and line mode and because of the options on the Duo it still sounds great and not pushed as I'm able to dial it back a bit on the Duo but still let it do its magical. Ive used the UAD mic pres with the UNISON plugs and its a great killer combo. Im able to get a nice transparent clean sound with or without any colour. I have this on my master bus and it performs so well that I want another one.
WIth DIYRE gear I'm able to treat and look at my gear like plugins as an extension of my Daw with ease and easy recall.

As Always great support and build instructions !

THE DUO IS A MUST HAVE !!

J
Jon Garcia
A pleasure to build - it sounds fantastic, too!

This unit sounds great, and offers incredible value for the money. I’m relatively new to DIY builds, so this project was a bit of a stretch for me, but I’m really glad I took it on! The assembly guide is thorough and easy to follow, and the “component sorting sheet” made it much easier to make sense of resistor color codes, etc. When I did run into snags, Peterson responded quickly with the information I needed, as well as a few replacement parts!
I have a fairly comprehensive plugin collection (UAD, Plugin Alliance, Soundtoys, etc.), and they’re very useable, but to my ear some of these “Colour Modules” blow them away.
I have a feeling the Duo is going to change my workflow completely... Rather than having a big mess of “crush” buses in the DAW, I can send a stereo bus or a mono source out to the Colour Duo, dial in a blend of “colours”, and simply print the blend. This process is more enjoyable, sounds better, and really allows me to streamline my Pro Tools sessions!
I’m truly grateful that DIYRE has gone to such lengths to make DIY builds accessible to those of us who don’t have an electronics background. My understanding of electronics (and my soldering skills!) improved tenfold over the course of the build, and I’m now confident that I could assemble kits from other companies that don’t offer the same level of detail in their assembly guides. If you’re a bit intimidated by the idea of building your own gear, I’d highly recommend taking the plunge with a kit from DIYRE.
