CTX Transformer Console Colour

$75.00 $99.00

  • Full Kit
  • Step-by-Step Guide
  • Supported
  • Beginner

The punchy, forward sound of a vintage American console.

Transformers and discrete opamps (DOAs) are the core building blocks of the American console sound. The punchy, present sound of those classic 70's consoles derives from the unique character of the DOA and transformer and the complex ways they interact with each other. Countless plugins have tried to imitate this sound, but why imitate when you can have the real thing?

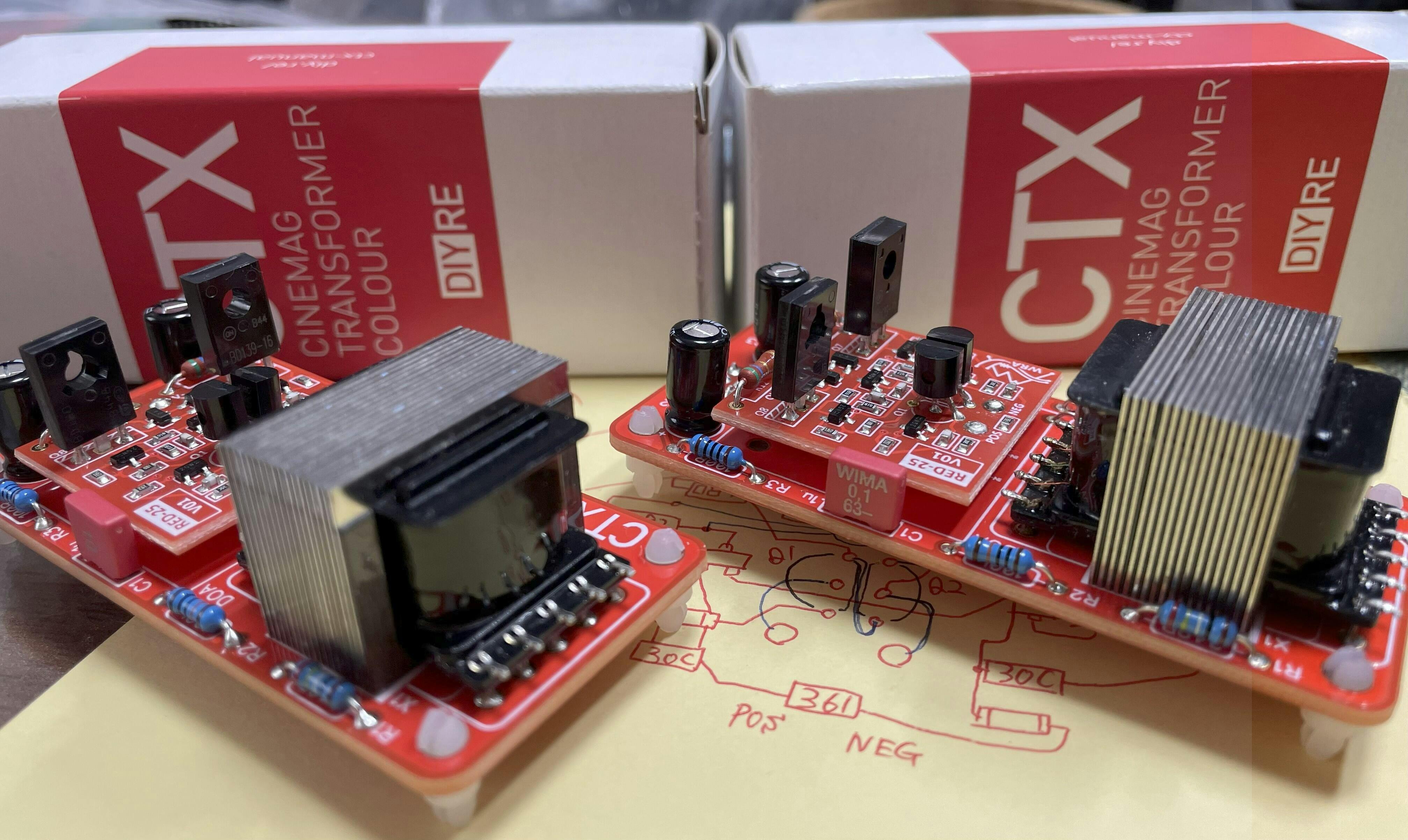

The CTX combines the RED-25 DOA with a Cinemag transformer and then cranks the gain to pack the sound of a channel strip into a single Colour. At moderate operating levels, the module's effect is vanishingly subtle, but makes everything sound more "finished" when stacked over numerous tracks in a mix. As levels increase the transistors of the DOA and core of the transformer saturate, thickening the signal with low-frequency harmonics and natural compression.

MKII Improvements

In 2019 to celebrate the fifth anniversary of the Colour Format, we redesigned the first three Colours, the 15IPS, CTX, and JFT, to use only discrete, class-A transistor circuitry. You could think of this as the opposite of an update—we’ve revered the technology of the Colours back to the late 60’s. The result is an authentic vintage character that’s more nuanced and refined.

In the process of revamping the CTX, we realized that incorporating a 2520-style DOA would be a natural choice given the history of API and Cinemag. Thus the CTX went from being a simple transformer Colour to a more full-featured American console Colour.

The DOA adds another layer of saturation that complements that of the transformer. The overall effect is more pronounced than the mkI, with higher harmonic distortion at low levels and the ability to impart noticeable compression effects at high levels.

Features

  • Transformer wound by Cinemag in California
  • Steel core emphasizes the phase distortion and hysteresis effects associate with the "iron" sound
  • Compatible with the Colour format
  • Red PCB!
  • Full, step-by-step assembly instructions and guaranteed support

Samples

Real analog plugins.

Colour is a new format for analog audio gear designed for and by the DIY community. We took our favorite sounding analog circuits and put them on modules that are small, affordable, and swappable.

The Colour format consists of Colours and Palettes:

Colours are ultra-compact, pluggable analog circuit blocks that impart various types of analog color. Check out our ever-growing selection of Colours. Colours can be designed and released by anyone.

Palettes provide controls, power, and support circuitry for Colours. We currently offer the Colour 500 Palette and CP5 Mic Preamp with Colour.
