Classic console equalizer with new features and modern signal path.

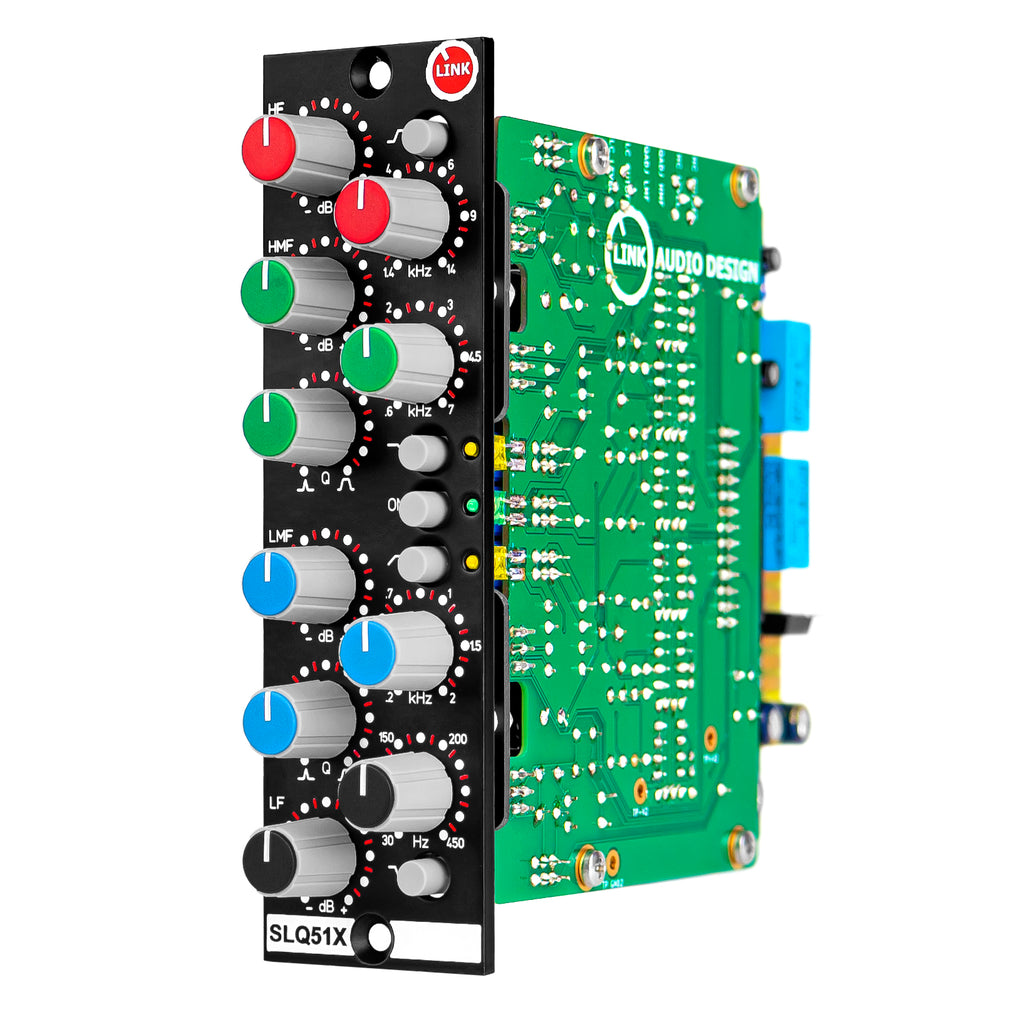

Link Audio has recreated the classic E-series and G-series console equalizers for the 500-series. Each version of the SLQ51x is based on a specific revision of the original EQ with the addition of high- and low-pass filters.

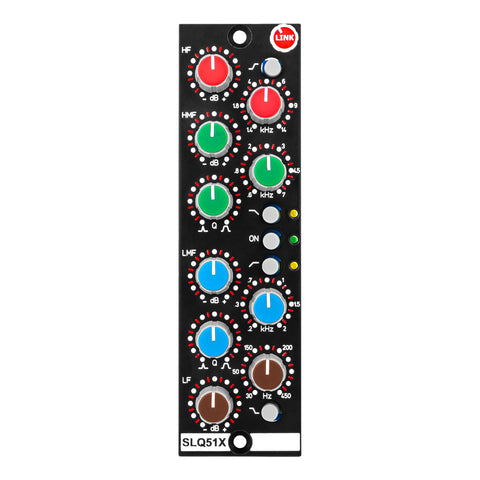

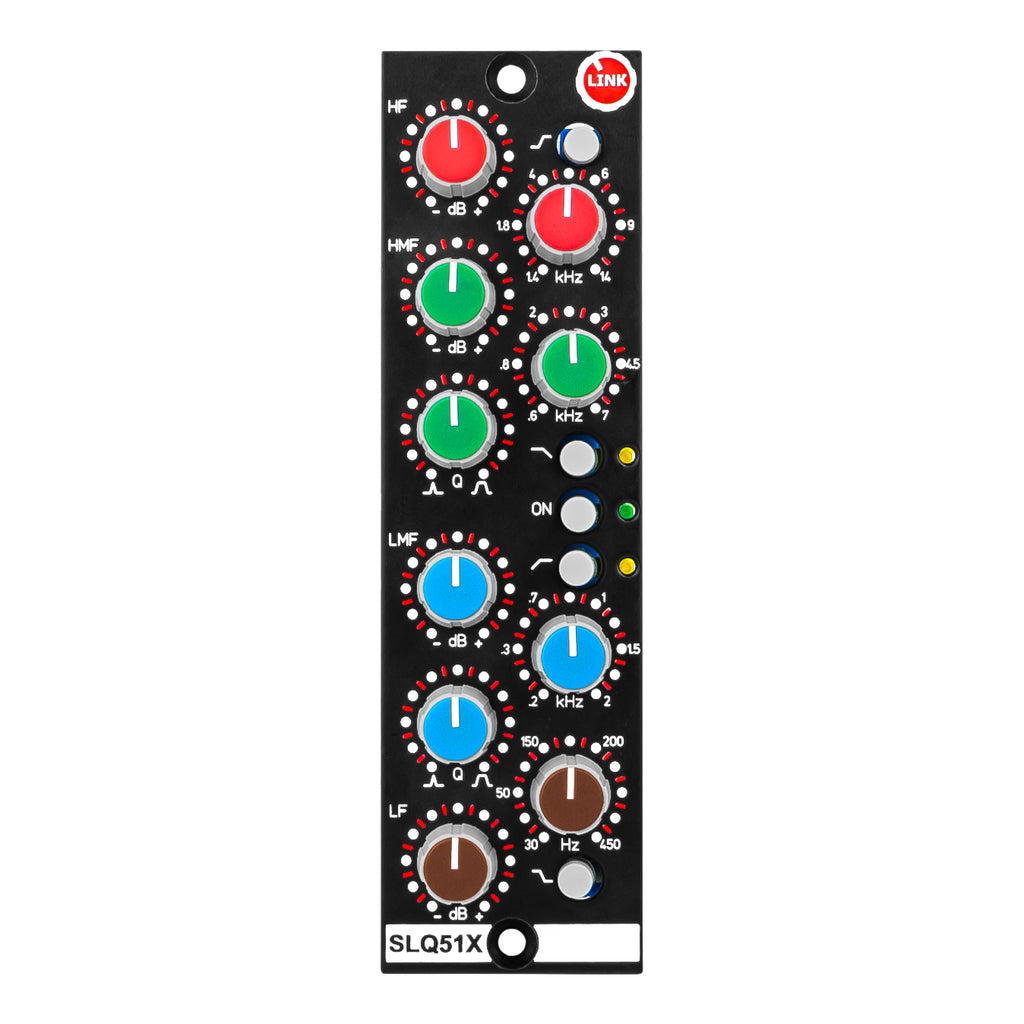

The Brown was the earliest EQ built into the E-series desks. It is a four-band, shelving EQ with a switchable "Bell" mode for the LF and HF bands. Each band provides up to +/-15dB boost/cut. The mid bands have an adjustable Q factor, and the boost/cut amount is fixed relative the Q.

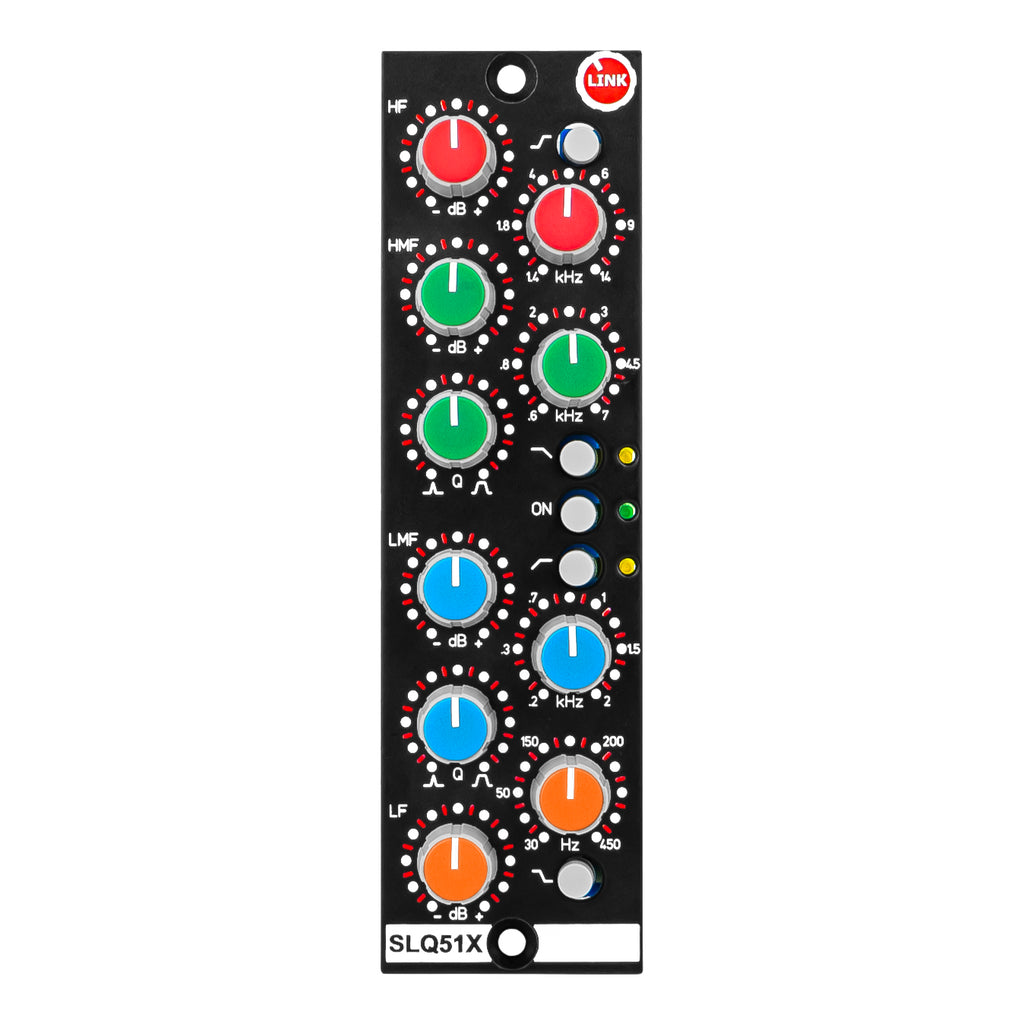

The Orange is a variation of the Brown with broader curves modeled on the Pultec EQs. The Link Audio version features +/-18dB boost/cut on each band. Unlike the Brown, the maximum boost/cut changes based on the Q.

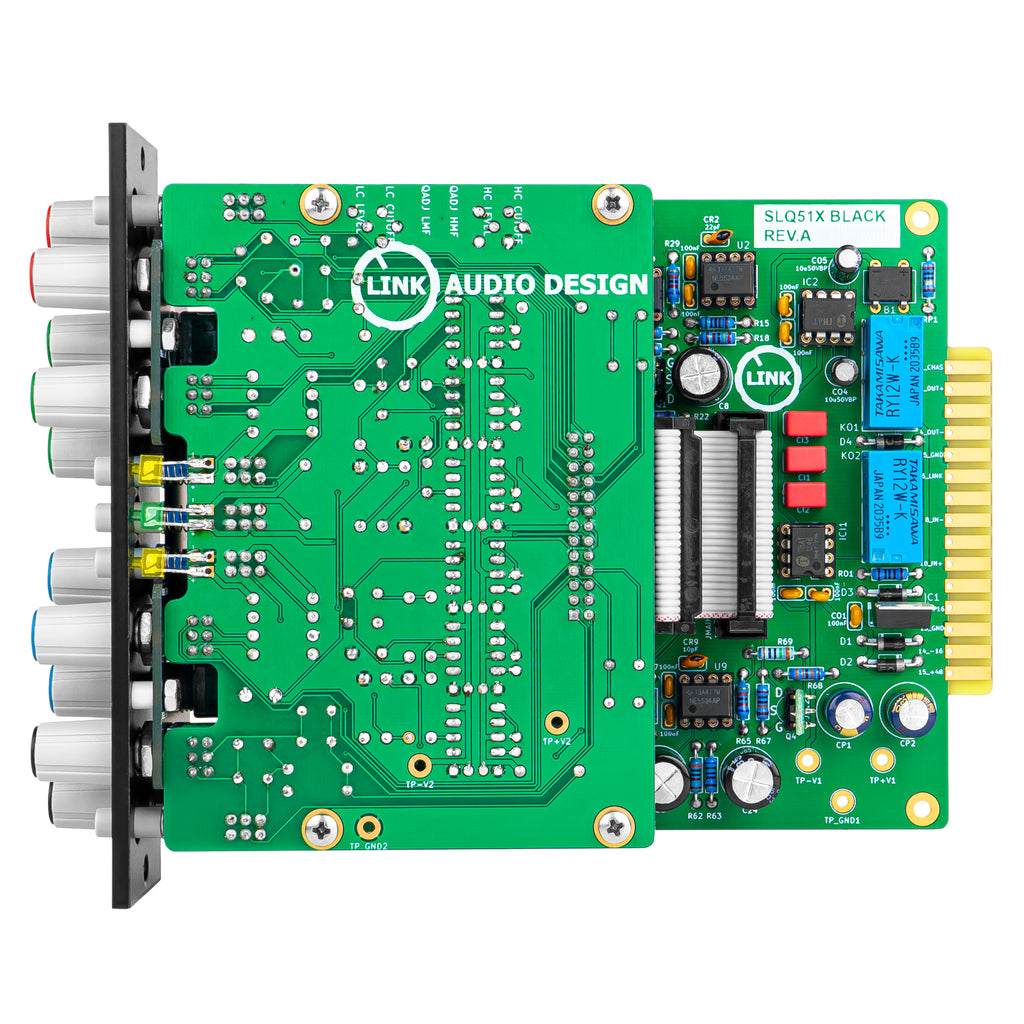

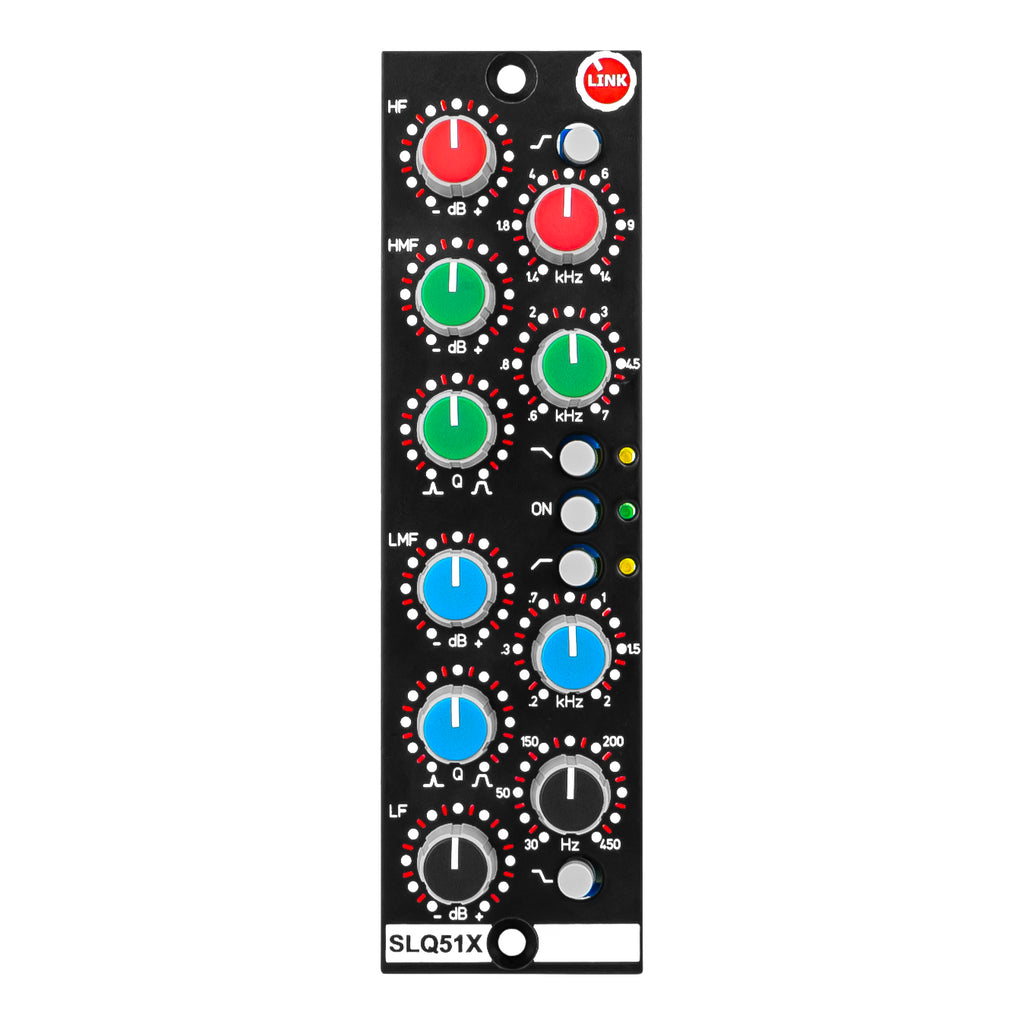

The Black version is almost identical to the Brown but with +/-18dB boost/cut on each band. This version is known for saturating nicely when the boosts are cranked.
The Pink version removes the "Bell" switches and adds "3x" and "/3" switches on the HMF and LMF bands. This means that all of the bands operate only in shelving mode, but the LMF and LMF bands have twice as many frequency options. This version features the most boost/cut available per band at 21dB. The Pink is also unique in that the bandwidth of the filters increases with boost/cut.
|HPF||80Hz, 24dB/oct||80Hz, 24dB/oct||80Hz, 24dB/oct||80Hz, 24dB/oct|
|LPF||8kHz, 24dB/oct||8kHz, 24dB/oct||8kHz, 24dB/oct||8kHz, 24dB/oct|
|LMF||0.2k-2kHz||0.2k-2kHz||0.15k-2kHz||0.2kHz to 2 kHz, "/3" mode|
|HMF||0.6k-7kHz||0.6k-6kHz||0.6k-9kHz||0.6-6kHz, "x3" mode|
|LF/HF mode||Bell or shelf||Bell or shelf||Bell or shelf||Shelf|
|Q Adjust||Max gain constant w Q||Max gain changes w Q||Max gain constant w Q||Max gain changes w Q|
- High-quality pots (TT Electronics and Alps Alpine)
- THAT 1246 input and THAT 1646 output stages
- Runs on +/-16V in the 500 or in the GDIY 51X rack
