OLA5 Opto Compressor
- Full Kit
- Step by Step Guide
Classic opto leveling with new features and your choice of Modern or Vintage signal path.

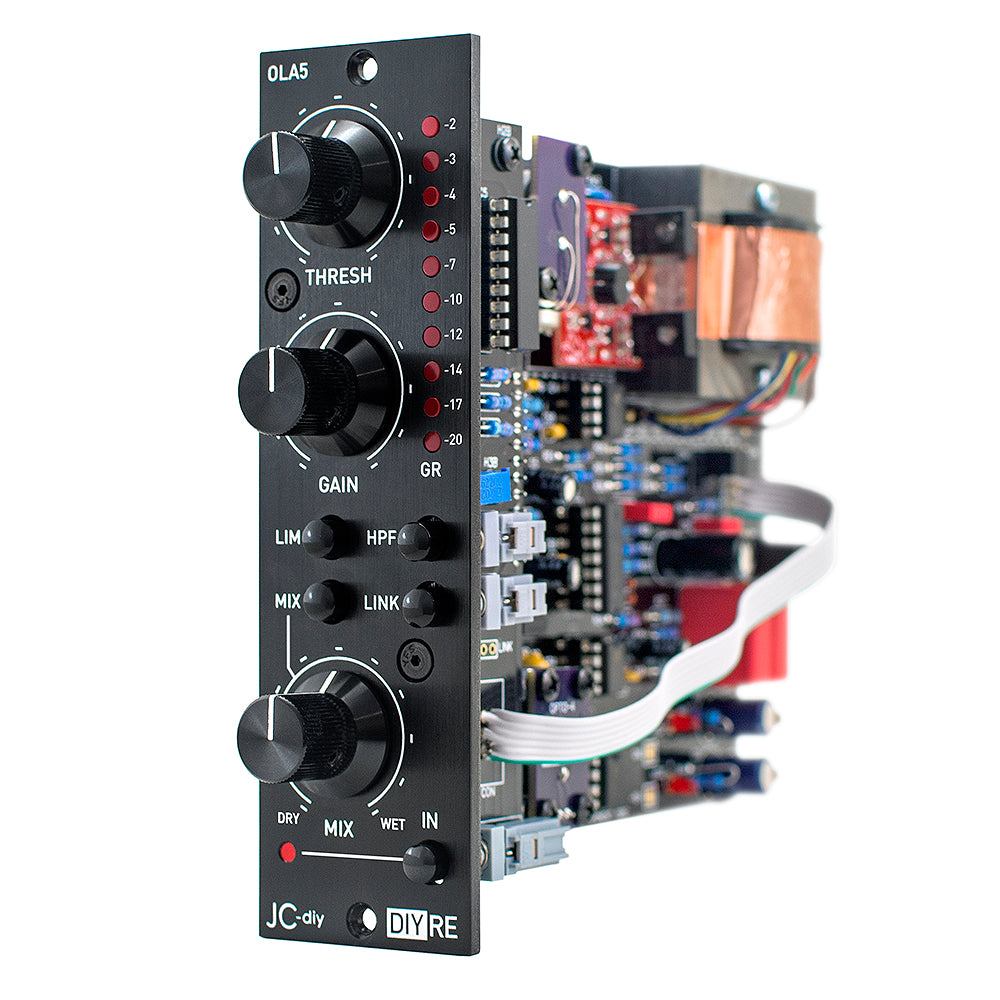

Classic Opto Leveling, Upgraded Signal Path. The Urei LA-4 leveling amplifier has always lived in the shadows of it's older siblings, the LA-2A and LA-3A. Despite possessing the distinctive, musical compression character its family is known for, the LA-4 was compromised by the muddy sound of early chip technology.
With the OLA5, we've painstakingly recreated the LA-4's leveling behavior—including cloning the original opto cell after finding that no modern substitute would do—but that's where the resemblance to the LA-4 ends. The OLA5's signal path is completely overhauled and upgraded. And the workflow hews closer to the LA-2A and LA-3A, while adding new features like a sidechain high-pass filter and parallel MIX control.
Modern Clarity or Vintage Tone. As with the EQP5 Equalizer Kit, you can choose between the Modern output stage for more transparency or the Vintage output for a thicker, more colored sound. If both outputs are installed, you can switch between them without any soldering. The vintage output includes our 2523 transformer which is based on the 2503 output transformer found in vintage API consoles. You can complement the transformer with our RED-25 DOA, or use your own DOA (the vintage output requires both the DOA and transformer to work).
A Challenging, Rewarding Build. The OLA5 is our most complex kit yet, with over 150 parts, and as such we recommend it for intermediate-to-advanced builders. Like all DIYRE kits, the OLA5 comes with detailed, step-by-step directions and email support.
Full Features List
- Stepped controls (21 positions) for easy recall and stereo operation
- Anodized aluminum knobs and front panel
- Unique, custom opto assembly that replicates the original
- 10-LED gain reduction meter
- Switchable wet/dry MIX knob
- Pushbutton select switches:
- LIM switches between compress (2:1) and limit (selectable) modes
- HPF filters low-frequencies out of the sidechain (150Hz)
- MIX engages the wet/dry mix control
- LINK enables stereo linking (But we do not recommend the OLA5 as a bus compressor. See the FAQ tab for more info.)
- IN engages the compressor
- Optional vintage DOA/transformer output section
- Kit includes every component required to build the OLA5
- Step-by-step manual and guaranteed support
- Fully compatible with the 500-series format
- Horizontal front panels available separately
What the Pros are Saying
"We patched up some very nice compressors (a Shadow Hills Mastering Compressor, a vintage Universal Audio LA-2A, and an LA-3A) and ran lots of sources through all four compressors. Vocals, bass, drums, room mics... this kit totally held its own. The compression itself sounded great – a slightly slower attack than some of the other comps, which served it well on sources like bass guitar – and the audio sounded good too... I'm buying my review unit and adding the "vintage" option."
TapeOp Magazine #130
Our FAQ is so thorough it needs it's own table of contents!
- What does it mean that the OLA5 is an ‘optical’ processor?
- What makes optical leveling so musical?
- Does the OLA5 sound like the LA-4’s I have used in the past?
- What is a ‘leveling amplifier’?
- Do I have a choice of ratios?
- What's the difference between the Modern and Vintage outputs?
- What is the HPF switch for?
- Can I link two units for stereo?
- Why do I get greater overall reduction in compress mode than in limit mode?
- The OLA5’s gain reduction meter is much faster than I would have thought with a vintage-based unit like this. Is this normal?
- How good is stereo matching between units?
- Can I buy a prebuilt unit instead of the kit?
1. What does it mean that the OLA5 is an ‘optical’ processor?
A: Optical limiters use a passive component called a ‘light dependent resistor’ (LDR) as their gain reduction element. The LDR is placed next to a light source driven by the level of the incoming signal. The louder the input signal, the brighter the light source, and the less resistance in the LDR. As the LDR, which sits between the audio signal and the ground plane, drops its resistance it dumps more signal to ground, reducing the output level. This is the basic functionality of optical dynamics processors.
Being passive in nature (and given the unique time-constants behavior of LDRs) the result is a remarkably useful compressor/leveler for broad tracking and mixing duties.
2. What makes optical leveling so musical?
Light dependent resistors have a memory, so to speak. The longer they are exposed to light, the longer they will hold their lower resistance. When released from this exposure LDRs will quickly regain much of its resistance, but then slows as its resistance gets closer to full ‘dark’ value. As a result, the release time of optical limiters is non-linear in a way that is pleasing to the human ear. It is largely for this reason the classic LA-type leveling amps have earned their beloved, classic status.
3. Does the OLA5 sound like the LA-4’s I have used in the past?
No, while the OLA5 replicates the compression character of the LA-4 exactly, it has a different signal path and therefore a different sound. The OLA5 uses a more modern signal path than the LA-4 that is clearer, smoother, and more detailed. The optional vintage output gives the OLA5 a thicker, weightier, sound that's closer to the LA-4 (which also has a transformer-balanced output), but still more detailed with more "silk" rather than "grit." It sounds lovely, and we’re confident you will prefer the sonics of the OLA5 to an LA-4.
4. What is a ‘leveling amplifier’? I thought the LA-2A/3A/4 were compressors?
"Leveling amplifier” is a name used to describe many early compressors that were intended for broad, subtle leveling of dynamic program material. The beauty of the classic LA-type leveling amplifiers (of which the OLA5 is one) is their broadly musical touch and functional simplicity (just reduction and gain makeup knobs), making it easy to get great results without much fiddling. The OLA5 is very forgiving and sounds great with broad variety of source material (though it absolutely rules on vocals, acoustic and bass guitars).
5. Do I have a choice of ratios?
Absolutely! The OLA5, like the classic LA-2A and LA-3A, provides a choice of either compress or limit functionality, selected via the LIMT button. With this button ‘out’ the unit is in compress mode (which is identical to the LA-4’s 2:1 ratio, complete with its lower threshold). This mode is perfect for general leveling of all kinds of material. Engage the LIMIT switch, and the ratio switches to either 4:1 or 12:1 (user programmable via a jumper on the motherboard) with a higher threshold setting. LIMIT mode excels at heavier processing duties where users prefer to… well… limit the dynamic range of a signal in a more heavy handed way.
6. What's the difference between the Modern and Vintage outputs?
Like our popular EQP5 passive equalizer kit, the OLA5 comes stock with a modern, IC-based output that provides clean, transparent sonics. The optional vintage output includes a discrete opamp, a large, custom, steel-core, tri-filar wound output transformer, and a NOS tantalum capacitor that all together impart a thicker, silkier, and fuller tonality. This output, first offered with the EQP5, is based on the output stage of the original solid state Pultec equalizers from the 1970s, and provides a wonderfully sweet, vintage heft to your signals.
Those who opt for the vintage output still have access to use the modern output as well, selectable via jumpers on the motherboard, so you can have the best of both worlds.
7. What is the HPF switch for?
The HPF (hi-pass filter) switch engages a filter into the sidechain of the OLA5 (the signal that drives the gain reduction portion of the device) that reduces the low frequency content. This filter is NOT a part of the signal path, so you don’t hear it directly. However, by reducing the low frequency content of the sidechain signal, strong low frequencies OLA5 won’t trigger the compressor as hard. The result is bigger, fuller tracks that sound authoritative and natural even while having their dynamic range reduced. This is particularly useful for bass guitar and full program material.
8. Can I link two units for stereo?
Yes! The OLA5 allows two units to be connected for stereo use via one of two available methods. The vast majority of current 500-series racks have built-in stereo linking. However, if you have an older rack, no worries. The OLA5 circuit boards have pads for connecting two units without the built-in stereo link feature. When you want stereo processing, set both units to the same ratio (compress or limit) and press the LINK switch on both units.
Pressing both link switches mixes the sidechain signals from both units and then sends that shared signal to both units. Please note that both units need to be set to the same ratio if you want matched processing, otherwise the shared side chain signal will be driving different ratios on each unit, resulting in a bizarre (thought potentially creative!) stereo image.
9. Why do I get greater overall reduction in compress mode than in limit mode? Shouldn’t the higher ratio of the limit mode result in greater reduction?
The OLA5, like the LA-4, automatically drops the threshold in COMP (2:1) mode. So while the processing is more subtle, the lower threshold means more of the signal is being processed. So even with a subtler ratio the overall reduction of the signal can be greater than the LIMIT mode.
10. The OLA5’s gain reduction meter is much faster than I would have thought with a vintage-based unit like this. Is this normal?
Yes! The OLA5 uses a modern bar meter driver that shows peak reduction, not just RMS (average) reduction the way an analogue VU meter does. The VU meter of the LA-4 (and LA-2A, LA-3A, 1176, and every other device so equipped) isn’t fast enough to show the actual peak reduction taking place in the opto cells, so watching VU meters can leave one feeling that the attack is slow, but in truth the onset of reduction is surprisingly quick in these units. The OLA5, with its modern metering, reveals the peak reduction missed by the metering of older units. In truth, these units are best set by ear anyway, though seeing the onset of leveling can be a very helpful tool for finer tweaking.
11. How good is stereo matching between units?
While it does have a LINK switch, the OLA5 is not meant to be a precise stereo compressor. Because of the somewhat chaotic nature of the opto cells, the matching between any two given units is just never going to be very precise. (This is the same reason you don't see stereo pairs of the LA-4.( So, while using two OLA5s on a bus can yield some cool, interesting results, don't expect accuracy between channels. If you're looking for a precise bus compressor, look elsewhere.
12. I don’t trust my soldering skills. Can I buy a prebuilt unit instead of the kit?
Yes, you can! Please see product page for pricing.
I can only say positive things about the ola5, anything that I put it on sounds better, it can be very transparent or pushed to be aggressive. Vocals, guitar anything really. Whatever track I apply it to is brought forward and sits in the mix in a very pleasing way. I will definitely be building more gear from DIYRE!!!
I built the Vintage version. Definitely a little more difficult than other builds I've done (mics, etc) but I was careful and took my time in a couple sessions in the evenings. Really recommend you print their sorting guide; I sorted the components then used a multimeter to doublecheck that I got the resisters correct. I was able to split into multiple sessions easily because I'd finish a couple "chapters" and then it was easy to leave the components in the bags and not open them. It's a long build but linear with easy stopping points, which meant that I could do it in several sessions while I was "fresh". I carefully followed the more mechanical aspects (reduction LEDs etc) and didn't have any issues with everything lining up when done; it looks clean.
Once I was done, though, I had a weird buzz. I contacted [****] and was SUPER impressed. I sent Peterson sound files and photos and he had my switch both jumpers to "modern" (which btw sounded great and it's definitely something I'm going to explore later). Noise went away. Pulled off the op-amp and sent photos. He had me re-solder some (that op-amp is small and I got some blobby joints) and lo and behold - NOISE GONE!
Gotta say this is great on vocals - it really is. But you know what else it's good on? Acoustic guitar. Gives it a sort of "woodiness", really does something to the sound. It's not in your face, it's something you can track with, but it's THERE. You flip that bypass button and gain match it and... it's a betterizer. Bonus: you're not sitting there asking yourself if this or that attack / release setting is better... you've got maybe 2-3 options here and you just are asking yourself "is A better than B?" and moving on. I'm loving using it during tracking and not feeling like there are a lot of "risks" doing so. That vintage option is great btw - has a little more saturation, but the real "plus" is that it carves 1 - 1.5 dB off sharp transients when they hit that transformer. That's a very good thing in my book... and if you don't agree, you can bypass it :)
Writing this review to say three things really. FIRST, this think sounds great. You can push a ton of compression here and it's quite seamless. SECOND, the instructions are amazing. Have heard them referred to as "adult legos" and it's accurate - this is just relaxing to do after you have a bit of experience. Brought my soldering skills up a bit too. THIRD, the support is exceptional. I'm more inclined than ever to build diyre kits, because I feel like I have a "backstop" here if something goes really wrong. I am not risking having a hassle on my hands, or a dead product, or some kind of troubleshooting nightmare.
This product strikes a sweet spot in so many ways. Now time to build a 500-series preamp to put before it, and a nice EQ to put after it for tracking vocals and acoustics...
As always, great guide and outcome. Nice comp, I built the vintage option. It's "just right" on vocals, but also works well on drums, bass, and guitar. Pretty much everything! I was expecting the number of ratios to be limiting, but so far I haven't missed them. Simplicity is a good thing.
I had built probably 4 different 500 series kits before I got this - and I struggled with it and eventually had to ship it back. They fixed it. My solder iron was too hot and I burnt one of the Opto caps. So, good customer service.
Anyways, the performance of this thing is awesome. You get a more flexible compressor than a 2A, but can get that silky vintage sound too, and you can also mix it in to your liking. Really nice kit. Would load up on a few of these if I was building a studio. It is my preferred vocal tracking compressor.
I'll post a YouTube url where I read children's books - all of them are done with a Hairball Audio Copper Pre running into the LA5. The mic on most is an SM7B.
I'd only done a little more advanced soldering before this (some basic experimentation, some XLR jacks, and fixing a microphone where the tube needed to be soldered in), so I was a bit worried that this might be too much for me, as I certainly don't consider myself intermediate-advanced as the description warned. And there was an initial hiccup of some missing resistors (a 9.1k and 100k from the first sub bag), but luckily I had a huge box of resistors on hand from the earlier experimentation, so these were easy to replace. Definitely recommend having some on hand. They're cheap (the box had cost me around $20, I think) and given the amount of resistors in this project, probably the most likely thing to be possibly missing – I'm sure you could get the missing ones from here, but if you're eager to dive in, it's nice to not have to wait! My kit was also missing the hex key, but I found one on hand that seemed close enough to work.
Now onto the good stuff... definitely recommend printing out the sorting sheets and taking the time to lay all the components out on them (I also taped them to the sheets). I don't know how things would have gone if I hadn't done this, but it was one less thing to worry about when I ended up doing the actual work... plus it was a nice little map to keep me aware of how far along I was... and made it easy to store stuff away when I had to pause (probably could have done it in a day, but it would have been a really long day). The instructions were pretty top notch, even making me aware of things I didn't know I'd have to think about (like polarity of some components!) at the right point! I used both the interactive and the regular instructions... the maps were especially helpful when a particular spot on the board didn't immediately jump out. There were only a couple of spots I can remember where they were a bit vague: there was one set of capacitors that were non-polar but not explicitly mentioned as such in the instructions (.1uF film caps C2, C16, & C17 - I looked them up online to confirm). This might have been obvious to someone more experienced, but it wasn't to me, and I was super nervous about soldering a capacitor the wrong way! The other thing that confused me was the orientation of IC1, IC2, and IC4... the ones in this kit didn't have the notch marking that made the others easy to place, so I had to sort of trust that the text would be going in the opposite direction to the other IC in that part of the board (interestingly that one was more carefully mentioned in the instructions even though it had the notch). That said, to have only a couple of places of genuine head scratching in a project like this was great... and while it's probably good to make the instructions clearer in these parts, it was also sort of fun to reason through myself... built a little confidence that I might actually know what I'm doing a bit!
Now the moment of truth... calibration. This is the first spot where I thought, uh oh... I done messed up! First, I'm only using my 500-series stuff for tracking, so I didn't have any sort of easy loopback setup for sending a signal out of my DAW and getting it back in. My interface really only had the L/R outs for monitoring setup so I had to get a bit creative to get it to work. This was complicated by the fact that my job wasn't fully functional. Here's how it manifested: The thing powered on just fine, and I was actually getting sound through it... but it was very low... I had to turn the gain up quite a bit in the 2nd (out of bypass) calibration step... and there was a point where when the signal coming in got just loud enough where it would suddenly jump from low volume to way too high! It was basically doing the exact opposite thing I'd expect of a compressor! Uh oh! I initially thought this was my loopback setup where I was getting a feedback loop somehow... but after eliminating that possibility, I had to accept that there was something just plain wrong. Kind of disappointing and because I didn't see any of what I was experiencing in the FAQ, I thought I might have to contact someone to help. That said, I watched some soothing videos from here first saying, "don't worry, there's nothing you can do here that can't be pretty easily fixed" and I looked up some common errors that lead to problems. One listed was not using enough solder. And although it didn't say it could lead to what I was experiencing, I suspected it. I'd initially started soldering in my resistors from the front, only starting to solder on back for capacitors that would be impossible to do on the front (oops! duh!). So I flipped it around and went over every connection on the back that wasn't fully covered again. This actually didn't take too long. Maybe half an hour. And like magic, it worked! The signal was super stable and I finished up.
The sound itself is great. Really, really smooth compression. Very happy with how it turned out.
